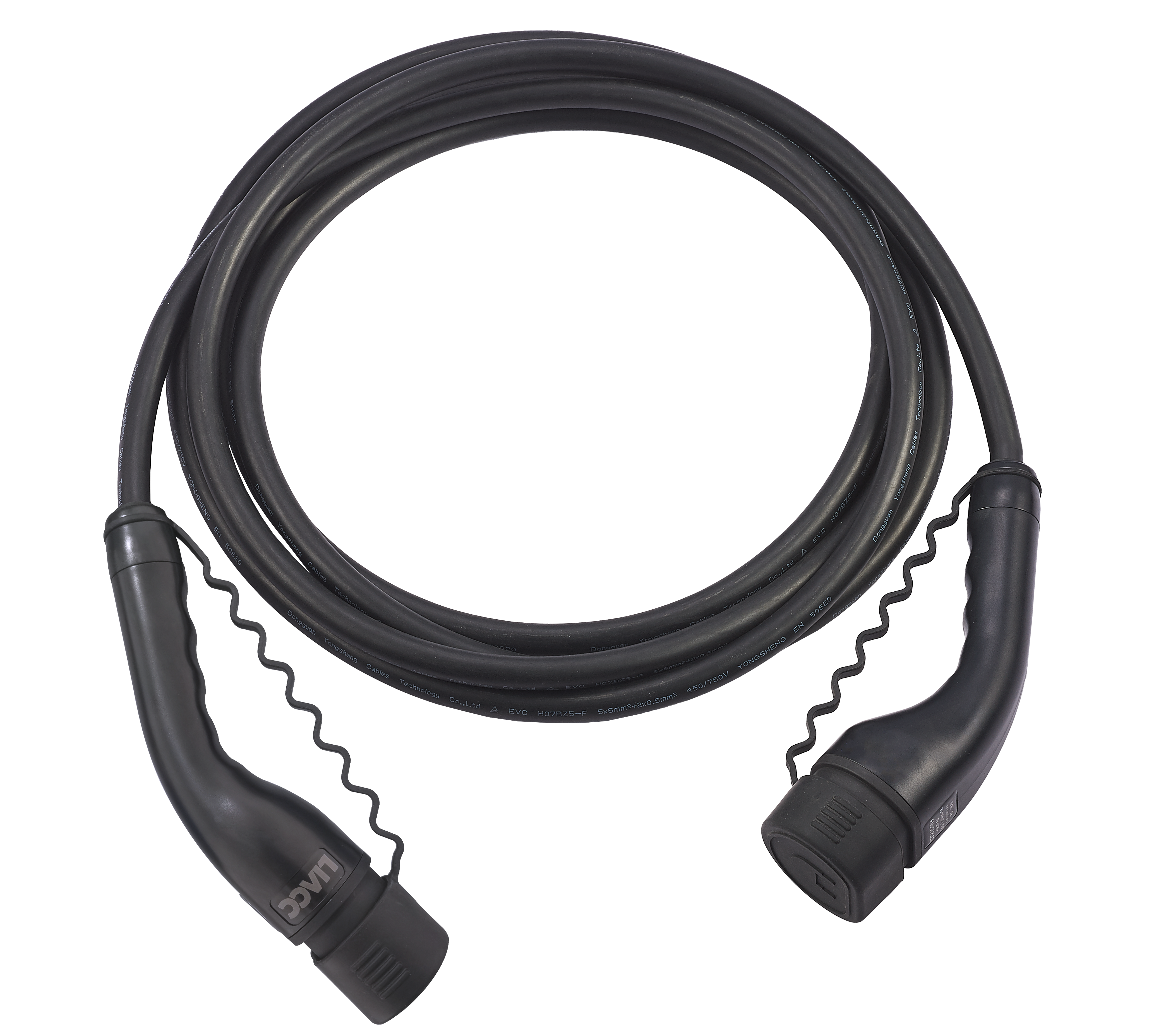

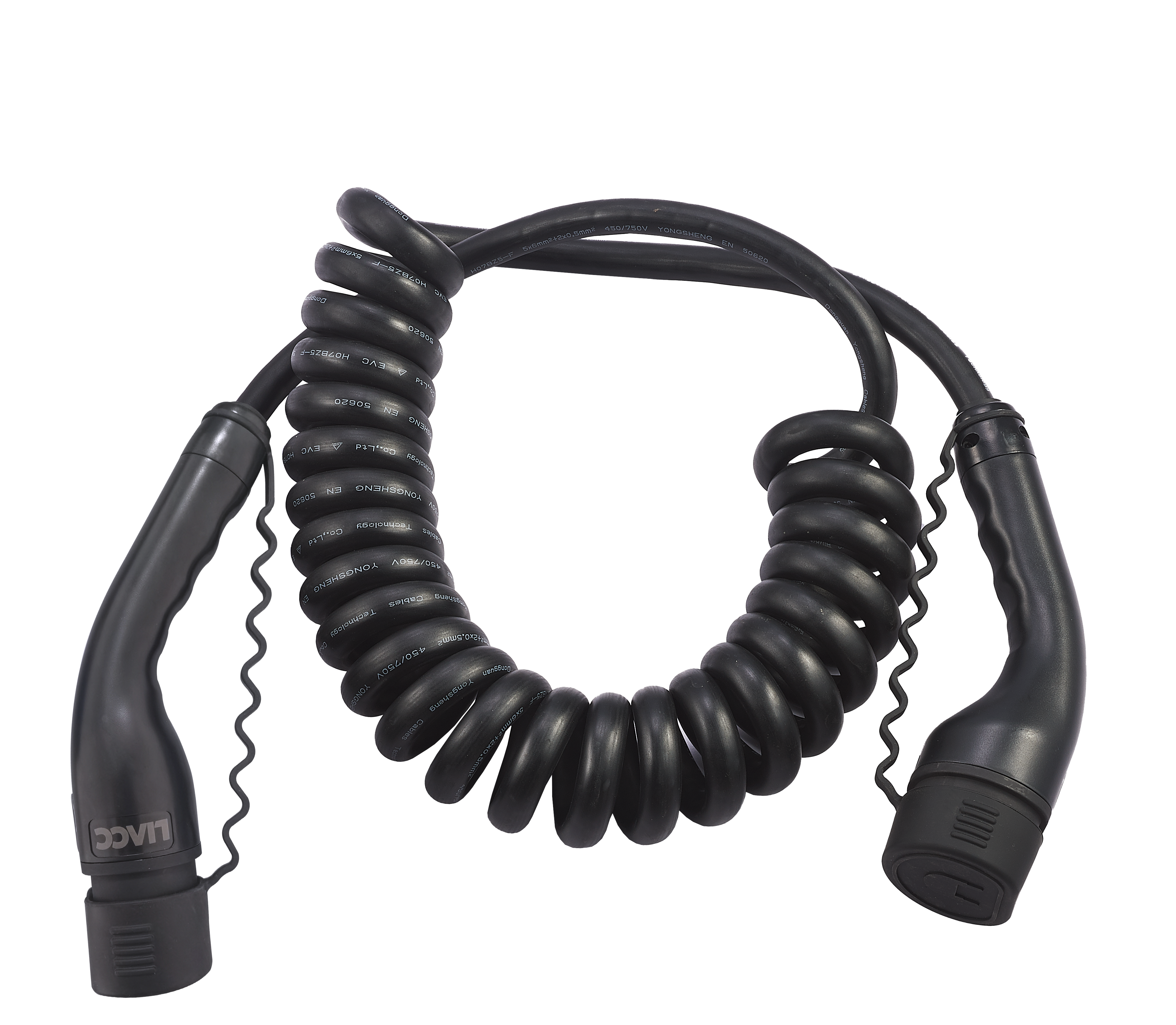

新能源汽车充电枪
新能源汽车充电枪，符合欧洲IEC62196标准。由桩端充电枪头，充电电缆和车端充电接口组成，适配欧标枪座版充电桩给电动车补电。产品有方便携带，便于收纳等特点。
型号 Model | EVP-M2F2-116 | EVP-M2F2-132 | EVP-M2F2-316 | EVP-M2F2-332 |
额定电流 Rated Current | 16A | 32A | 16A | 32A |
额定电压 Rated Voltage | 1 / N / PE AC 230V | 3 / N / PE AC 400V | ||
充电功率 Charging Power | 3.7kW | 7.2kW | 11kW | 22kW |
机械寿命 Mechanical life | unload plug & off >10000 times | |||
工作温度 Working Temperature | -30℃~65℃ | |||
IK等级 Impact resistance | IK 10 1m height drop and 2 Tons vehicle run over pressure | |||
绝缘电压 Insulation Resistance | >1000MΩ | |||
接触电阻 Contact Resistance | 0.5MΩ MAX | |||
保护等级 Protection Class | IP54 | |||
接口端子 Contact Pin | 镀银铜铝合金 Aluminum alloy, silver-plated surface, insulated top | |||
枪头材料 Shell Material | 合金材料 Thermoplastic (flame retardant rating V-0) | |||
电线长度 Cable Length | 5m或定制 5m (length can be customizable) | |||
